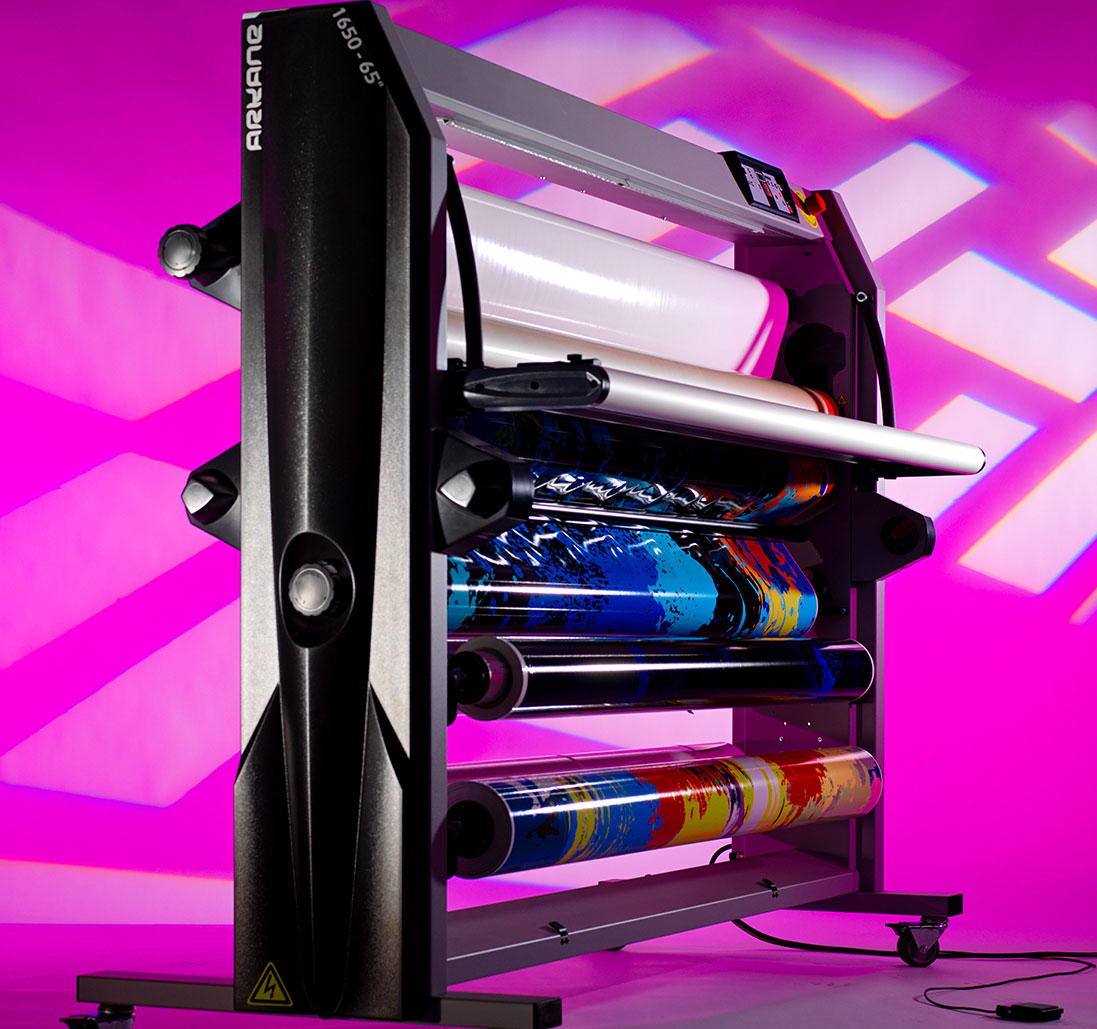

Arkane comes with brilliant applications system in-built. In order even enhance the user experience we have two add-on solutions:
Arkane with two heating rollers up to 140°C (280°F). Recommended for use with adhesive film requiring heat activation prior to installation (3M Envision...). Do not hesitate to contact us for more information.

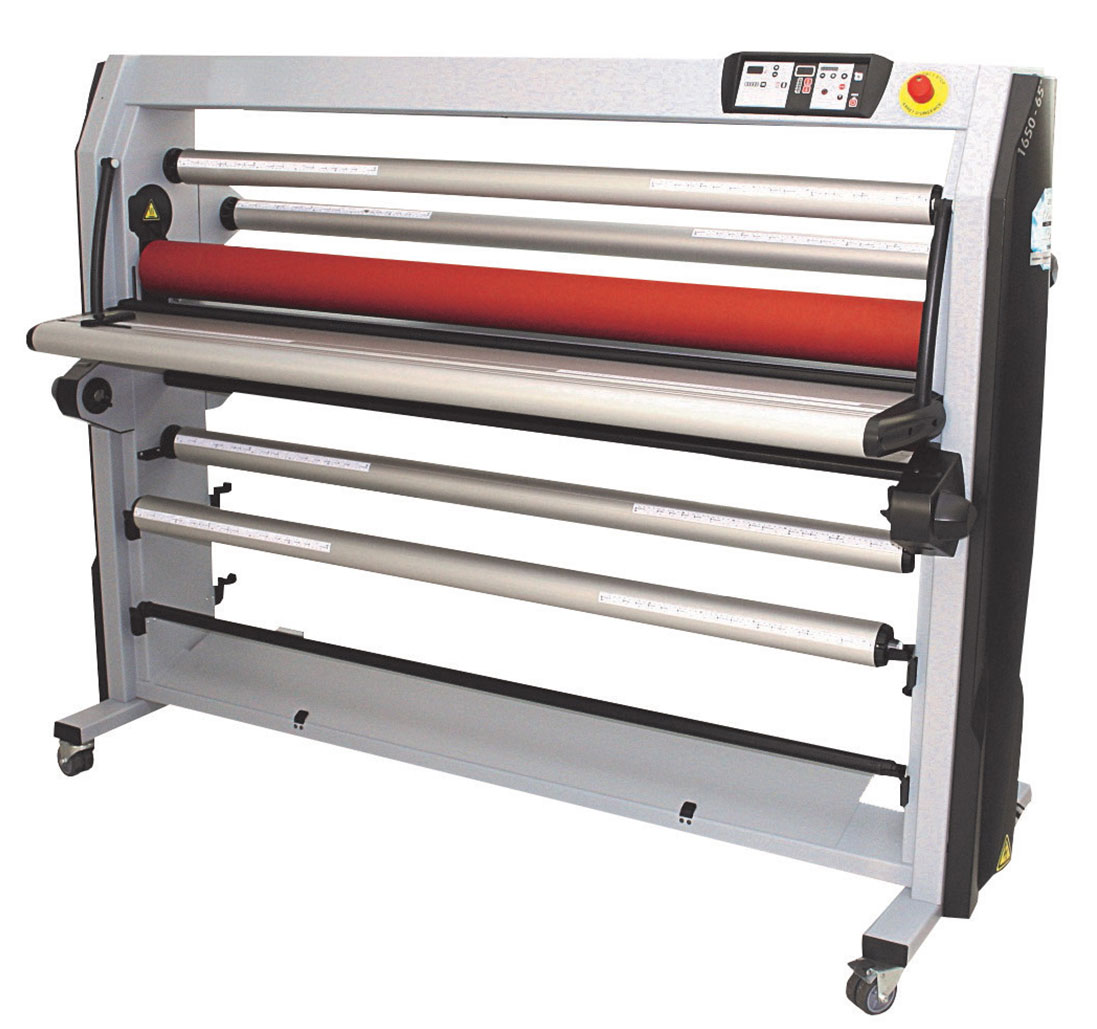

Optional Led kit for Arkane to be installed under the upper beam of the laminator.
This light enables to check the right process of the lamination.
Ideal for dark spot in the workplace.
Controlled by the main switch, it also shows if the machine has been turned off before leaving the workshop.
Delivered mounted on the machine if ordered together or compatible on any existing machine.
 Mounting up to 50mm (2") |
 10 speed |
 Diameter 23cm (9"), film reel 100m(110yd) |
MISTRAL 1650 | MISTRAL 2100 | ARKANE 1650 | ARKANE 1650 D |
| Maximum Thickness Document + board | 50 mm (2") | 50 mm (2") | 50 mm (2") | 50 mm (2") | ||
| Maximum working width | 171 cm (67") | 216 cm (85") | 171 cm (67") | 171 cm (67") | ||
| Maximum film width | 165 cm (64") | 208 cm (82") | 165 cm (64") | 165 cm (64") | ||
| Maximum length of the film reels usable | 50 / 100 m (maximum diameter 23 cm/9") | 50 / 100 m (maximum diameter 23 cm/9") | ||||
| Diameter of the rollers | maximum 114 mm (4.4") | maximum 114 mm (4.4") | 119 mm (4.7") | 119 mm (4.7") | ||
| Temperature of the upper roller | 30 to 60°C in steps of 5° (86 to 140°F in steps of 9°F) | 30 to 140°C(86 to 284°F) | ||||
| Temperature of the tower roller | - | - | - | 30 to 140°C (86 to 284°F) | ||
| Heating time from 20°C (68°F) ambient temperature to 40°C | 7 mn | 7 mn | 7 mn | 7 mn | ||
| Number of self blocking shaft delivered | 5 + 1 unwinding shaft | 5 + 1 unwinding shaft | ||||
| Adjustable speed m / mn | from 0,3 to 6,3 | from 0,3 to 6,3 | from 0,3 to 6,3 | from 0,3 to 6,3 | ||
| Adjustable speed ft / mn | from 0,9 to 21 | from 0,9 to 21 | from 0,9 to 21 | from 0,9 to 21 | ||
| Power W | 1800 | 1800 | 1800 | |||
| Voltage | 230 or 110 V / 50 - 60 Hz | 230 or 110 V / 50 - 60 Hz | 230 or 110 V / 50 - 60 Hz | 230 / 50 - 60 Hz | ||
| Amperage | 8A/230 V or 16 A/110V | 8A/230 V or 16 A/110V | 8A/230 V or 16 A/110V | 16 A/230V | ||
| Dimensions of the machine | (cm)
(inch) |
W 206 x D 82 x H 153
W 81" x D 32" x H 60" |
W 250 x D 82 x H 153
W 98" x D 32" x H 60" |
W 206 x D 82 x H 153
W 81" x D 32" x H 60" |
W 206 x D 82 x H 153
W 81" x D 32" x H 60" |
|
| Net weight of the machine | 210 kg (462 lbs) | 257 (566 lbs) | 220 (485 lbs) | 220 (485 lbs) | ||
| Shipping Dimensions of the machine | (cm)
(inch) |
W 215 x D 95 x H 170
W 84" x D 37" x H 67" |
W 264 x P 96 x H 185
W 103" x P 38" x H 73" |
W 214 x D 94 x H 171
W 84" x D 37" x H 67" |
W 214 x D 94 x H 171
W 84" x D 37" x H 67" |
|
| Machine weight for shipping | 320 kg (705 lbs) | 495 kg (1090 lbs) | 320 kg (705 lbs) | 320 kg (705 lbs) | ||
| Warranty | 1 year | 1 year | 1 year | 1 year | ||
| Made in France, CE certified in compliance with the Machine and the Electromagnetic Compatibility Directives CEM | ||||||
