Mistral

Unbeaten performances at this price level

The Mistral is a wide format cold laminator and encapsulator offering industrial performance at exceptional value. The cold laminator comes with heat assist upper roller (adjustable from 30°C to 60°C in steps of 5°C - 86°F to 140°F in steps of 9°F). Its easy-to-use design makes it ideal for any level user making high quality graphics. Its durable uniframe construction requires less assembly and minimal maintenance.

Single side lamination
Simultaneous lamination and adhesive mounting
Encapsulation with cold laminates in one go
Application tape
Mounting onto boards up to 50mm (2") thickness
Dedicated for the most demanding users in terms of quality and productivity.
Lamination speed from 0,30cm (1ft) to 6,20m/min (21ft)
Roll take up shaft for laminated documents included.

DOWNLOAD BROCHURE

Mistral Lamination Series

True Wide Format Cold Laminators built for all level of users

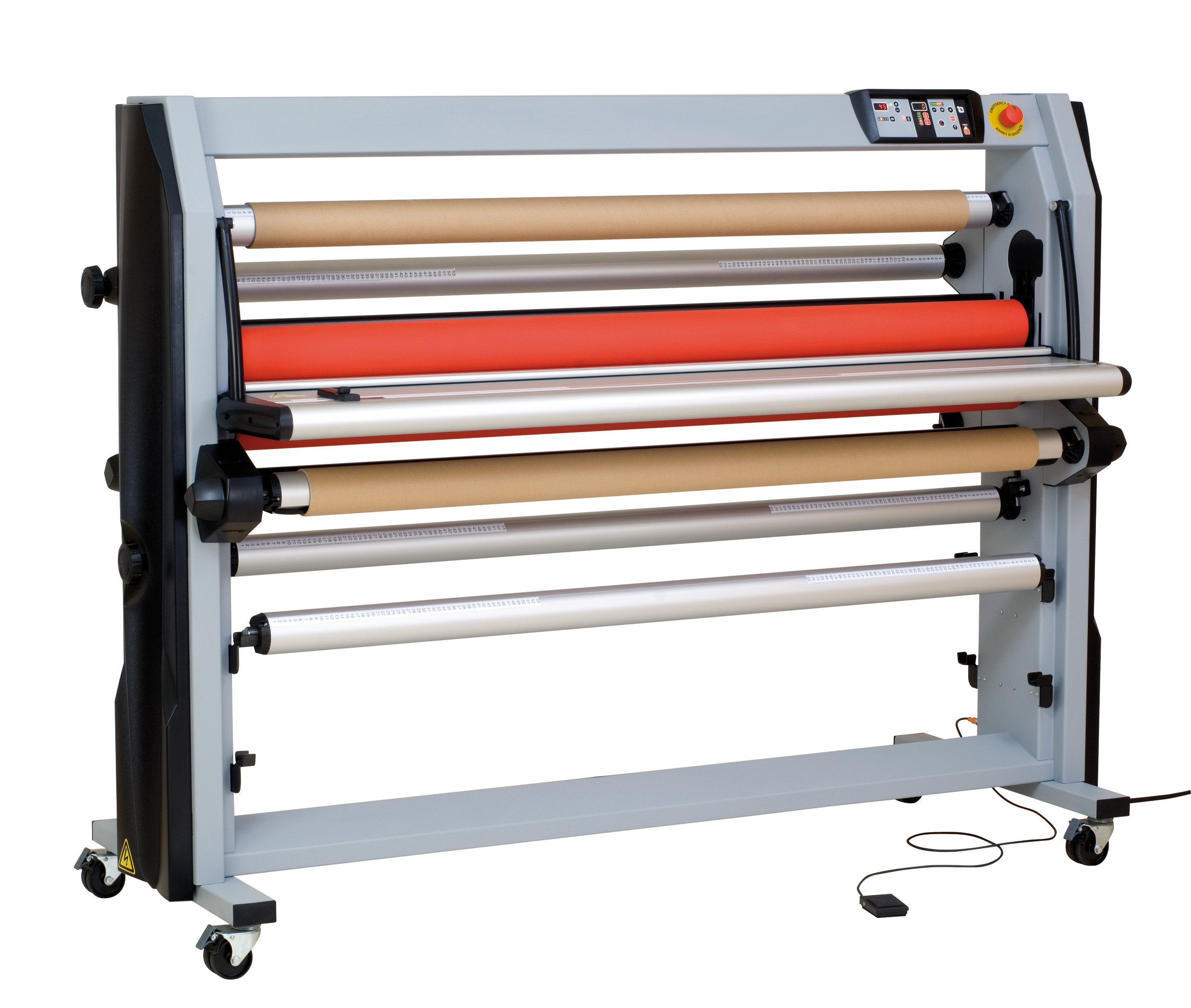

Mistral 1650

For maximum lamination width upto 165cm

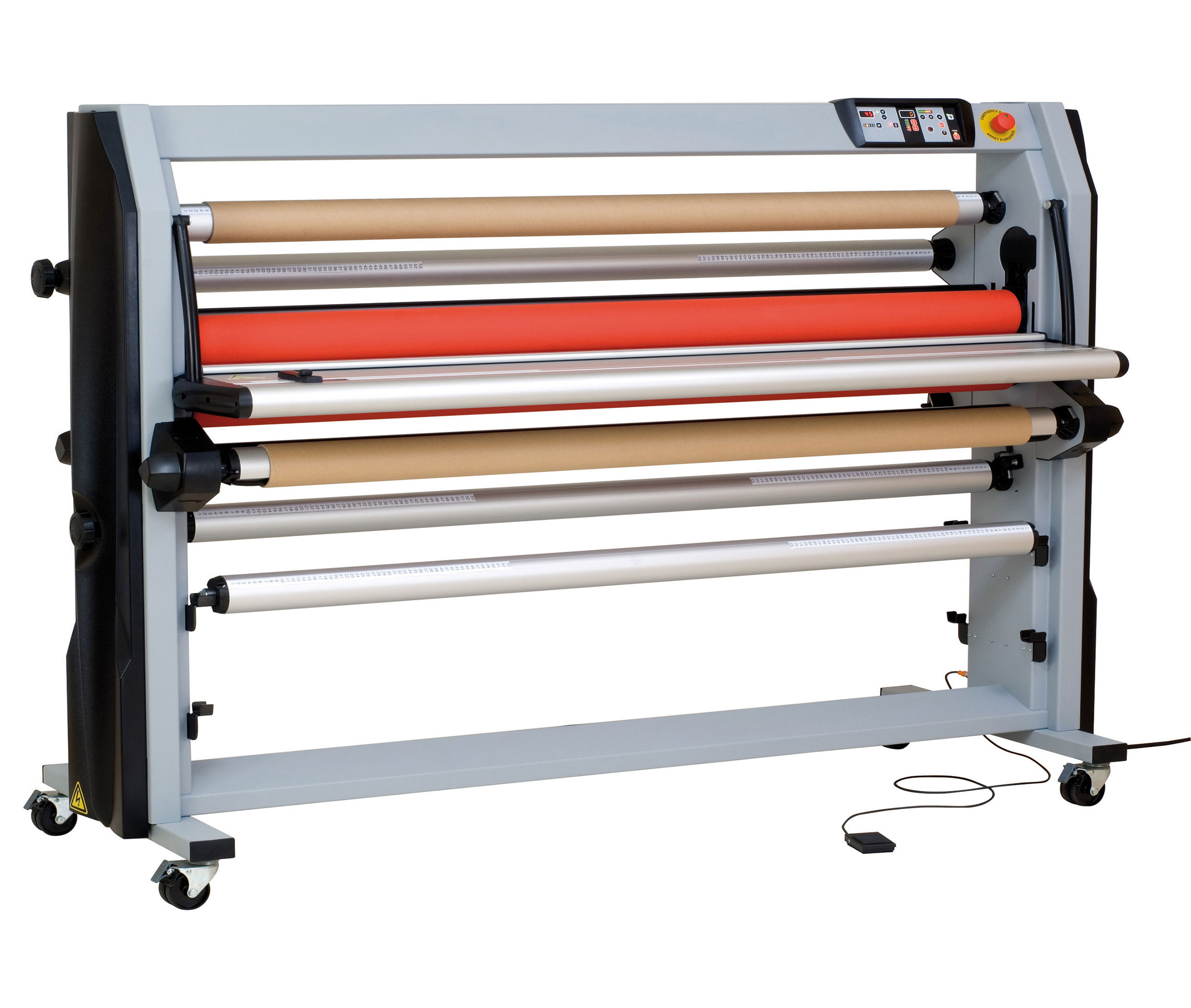

Mistral 2100

For maximum lamination width upto 208cm

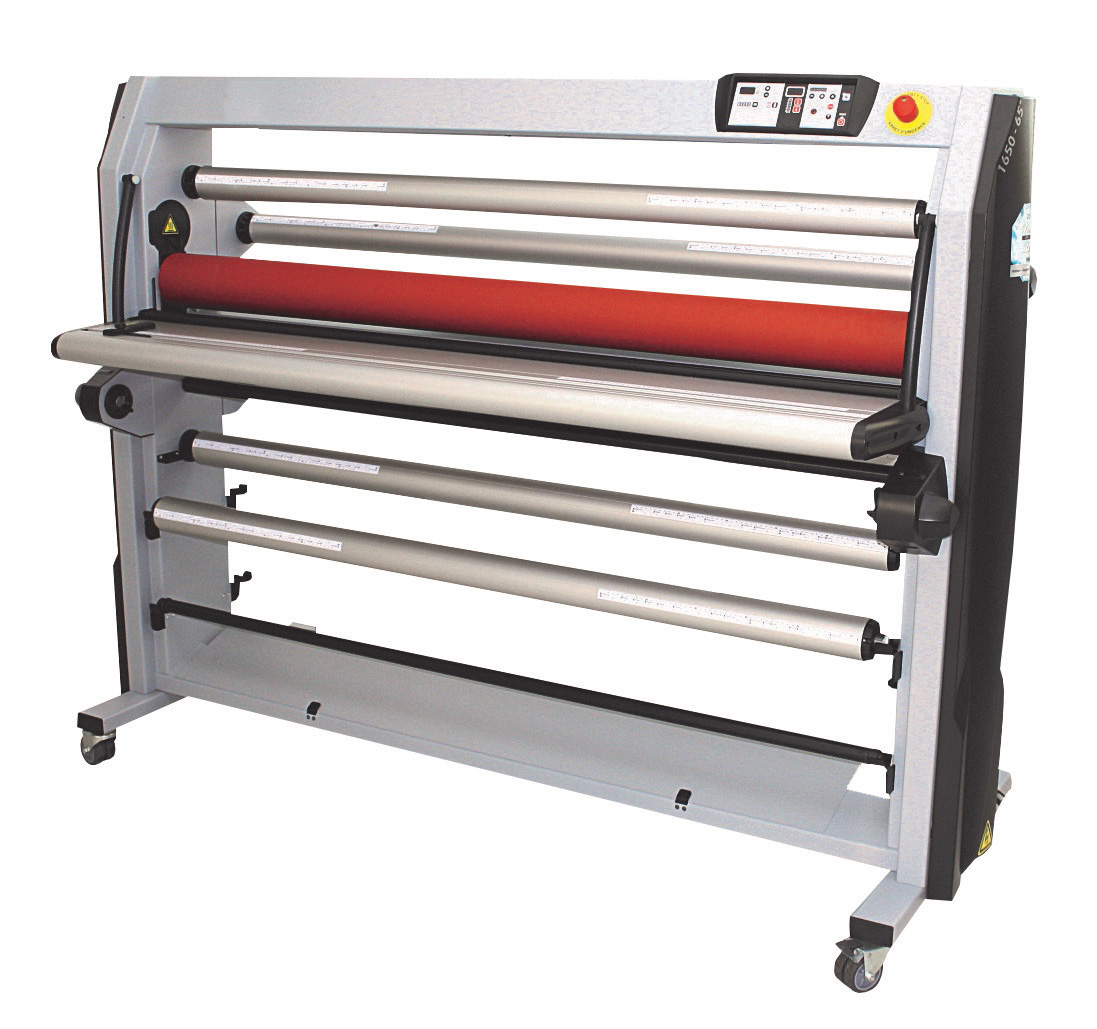

Optional Led Kit Available for both Mistral 1650 and 2100

- Optional Led kit for Mistral to be installed under the upper beam of the laminator.
- This light enables to check the right process of the lamination.
- Ideal for dark spot in the workplace.
- Controlled by the main switch, it also shows if the machine has been turned off before leaving the workshop.
- Delivered mounted on the machine if ordered together or compatible on any existing machine.

Specifications

Mounting up to 50mm (2")	10 speed	Diameter 23cm (9")	MISTRAL 1650	MISTRAL 2100
Maximum Thickness Document + board			50 mm (2")	50 mm (2")
Maximum working width			171 cm (67")	216 cm (2")
Maximum film width			165 cm (64")	208 cm (82")
Maximum length of the film reels usable			50 / 100 m (maximum diameter 23 cm/9")
Diameter of the rollers			maximum 114 mm (4.4")	maximum 114 mm (4.4")
Temperature of the upper roller			30 to 60°C in steps of 5° (86 to 140°F in steps of 9°F)
Temperature of the tower roller			-
Heating time from 20°C (68°F) ambient temperature to 40°C			7 mn	7 mn
Number of self blocking shaft delivered			5 + 1 unwinding shaft
Adjustable speed m / mn			from 0,3 to 6,3	from 0,3 to 6,3
Adjustable speed ft / mn			from 0,9 to 21	from 0,9 to 21
Power W			1800	1800
Voltage			230 or 110 V / 50 - 60 Hz	230 or 110 V / 50 - 60 Hz
Amperage			8A/230 V or 16 A/110V	8A/230 V or 16 A/110V
Dimensions of the machine	(cm) (inch)		W 206 x D 82 x H 153 W 81" x D 32" x H 60"	W 250 x D 82 x H 153 W 98" x D 32" x H 60"
Net weight of the machine			210 kg (462 lbs)	257 (566 lbs)
Shipping Dimensions of the machine	(cm) (inch)		W 215 x D 95 x H 170 W 84" x D 37" x H 67"	W 264 x P 96 x H 185 W 103" x P 38" x H 73"
Machine weight for shipping			320 kg (705 lbs)	495 (1090 lbs)
Warranty			1 year	1 year
Made in France, CE certified in compliance with the Machine and the Electromagnetic Compatibility Directives CEM
