Falcon XL-3300

High performance grand format SolaUV printer

Up to 113 m2/hr in draft mode
Up to 2400 dpi max resolution
3300mm maximum roll width

A whole new dimension to quality production

Expand your business and profits

Falcon XL-3300 delivers a unique combination of efficiency, reliability and huge variety of roll printing applications. Perfectly suited to print on fabric, banner, retail and tradeshow graphics up to 3.2 metre wide or multiple smaller rolls simultaneously. Print on the largest variety of Roll media with our NO pinch roller system using SolaUV – CMYK and White Inks that adhere to nearly anything at high speed and 2400 dpi output.
  • Rock Solid in its basic configuration and upgrade ready, to grow with your business
  • Unique ADP Technology to provide optimum print quality and versatility
  • The perfect combination of Cool LED Lamps and SolaUV Inks for high adhesion and high density even on production modes for mind blowing application range
  • The best backlit controls till date on any Grand Format Printer
DOWNLOAD BROCHURE
video1

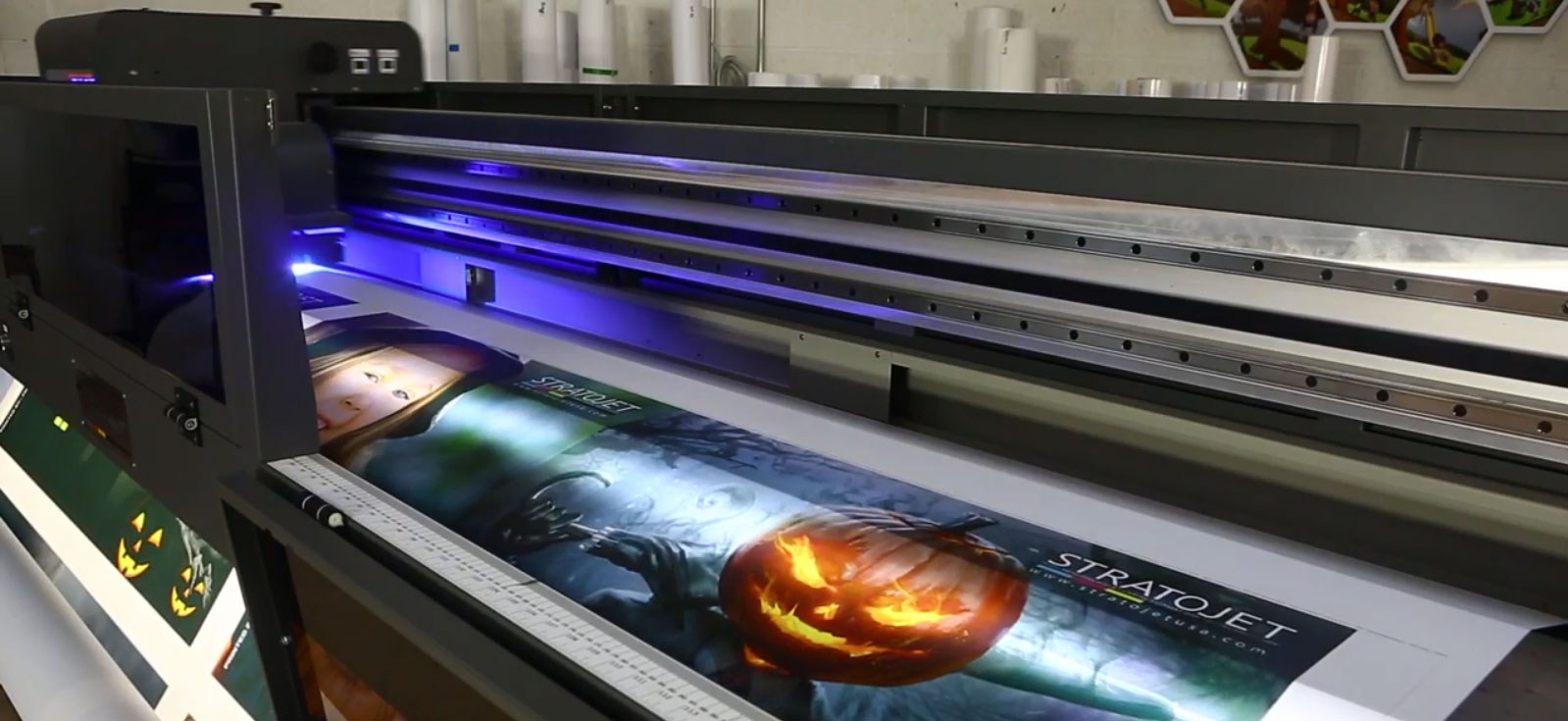

video2

Add more efficiency, color, detail and confidence in your applications

Falcon users have a clear competitive edge with comprehensive color choices, on-the-go mode switch options and increased print accuracy for true production. With unique backlit controls and an unbelievable media movement technology, get the confidence to crank thousands of banners or speciality materials meeting the exact quality standards for you and your clients

Application Questions
Backlits
Canvas
Label and Decals
Outdoors
Point of Purchase
Vehicle Wraps
Wall Covering
Window Graphics
Billboard
Fine Art
  • Polybags
  • Paper
  • Flexible substrates
  • Vinyl
  • Wall covering
  • PVC banner
  • Static cling
  • Polycarbonate
  • Mesh banner
  • Mylar film
  • Tyvec
  • Magnetic film
  • Canvas
  • UV textiles
  • Window perf

Benefits

Loading and printing the max amount of rolls up to 3.3 metre in total width
is a standard option like every printer grand format printer. But Falcon takes productivity to the next level.

Dual Rolls

Double your productivity with parallel processing of two rolls up to 1.6 metre

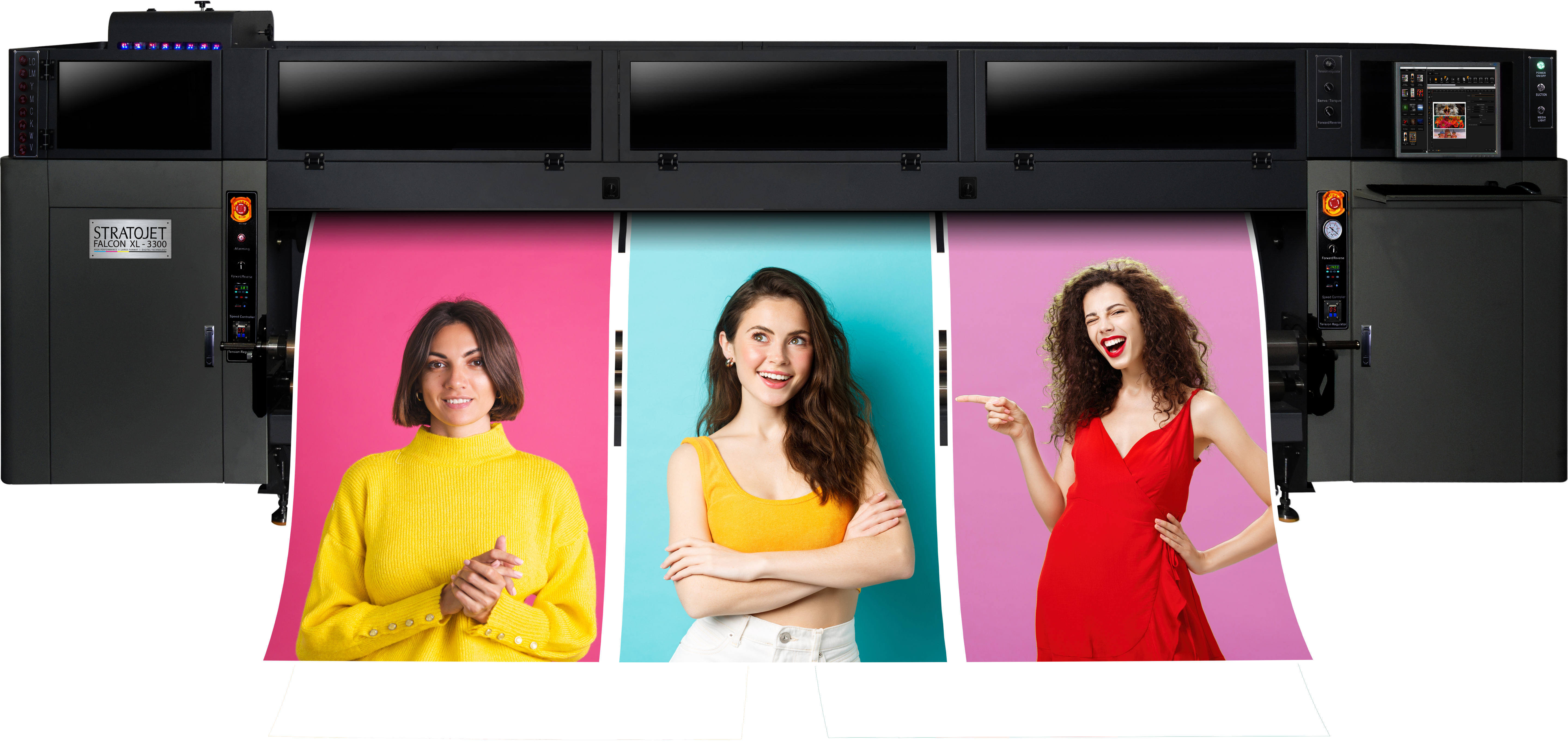

Triple Rolls

Maximize your productivity with processing three rolls up to 1.0 metre each without any add on units

* NO SPOOLERS or Accessories needed for doing dual or triple rolls. Falcon comes with Advanced Media Grip System

Custom Configuration

Build your configuration based on speed, applications and speciality corporate color requirement

A shrine to high performance

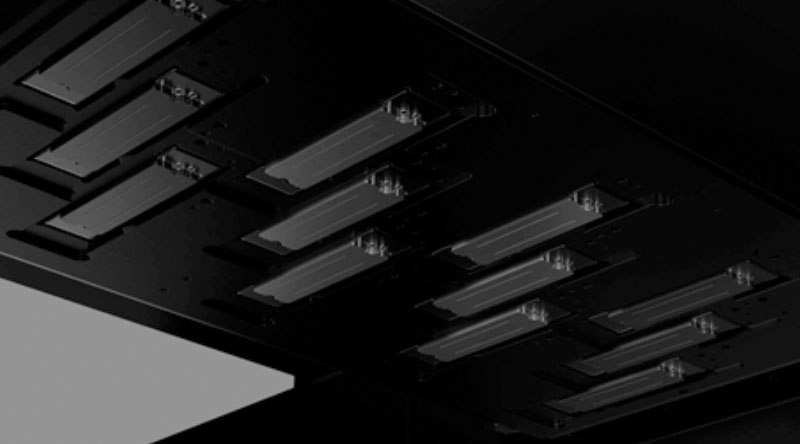

The Falcon frame allows you to choose your configuration based speed requirements from 4 – 16 Printheads to obtain 113 m2/hr.

* Options available for even more faster speeds. Contact StratoJet for more details

Tailored to drive your quality desire

Your Falcon XL can express your passion and sense for color requirements. Apart from the ADP technology, you have the option to choose from 12 colors including white. Meaning enhanced color gamut, extra spot colors and exceptional print quality

Advanced Grip System

To ensure zero wrinkles on regular production Falcon XL has adapted a very unique roller media feed system that removes all media handling and movement issues that are notorious issues with a traditional pinch roller mechanism. This makes this printer faster with more consistent high-quality printing than any other printer in its class

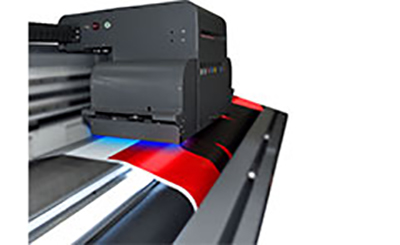

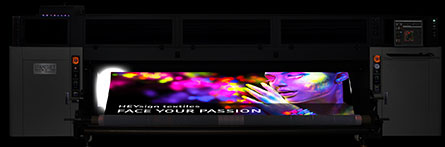

Dual Backlit Controls

Dual Backlit Controls to ensure proper print quality inspection while printing and post printing. The first backlit box helps in check and banding issues, to quickly resolve and no have media wastage, while the second backlit control will help you see how the final output looks like, and inspect color quality while printing is online.

Dual media loader and take up

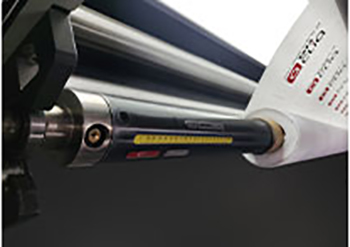

Falcon XL-3300 comes with dual media loader, the first loader and take up is an air-rod controlled which uses compressed air to hold fabric, backlit films and materials that need consistent tight grip and make sure media is stabilized and move consistently. For Super Heavy Materials, the Falcon has a second media holder at the bottom, which makes loading and unloading heavy materials simple and easy

A Unique StratoJet System that helps you
avoid losing valuable print time

White ink parking system -Not using your White Ink for a while? No problem, just hit a button and our printer will Park the White Ink and fill with flush until you need it. Then just do the same and the printer loads the White Ink.

Productivity Features

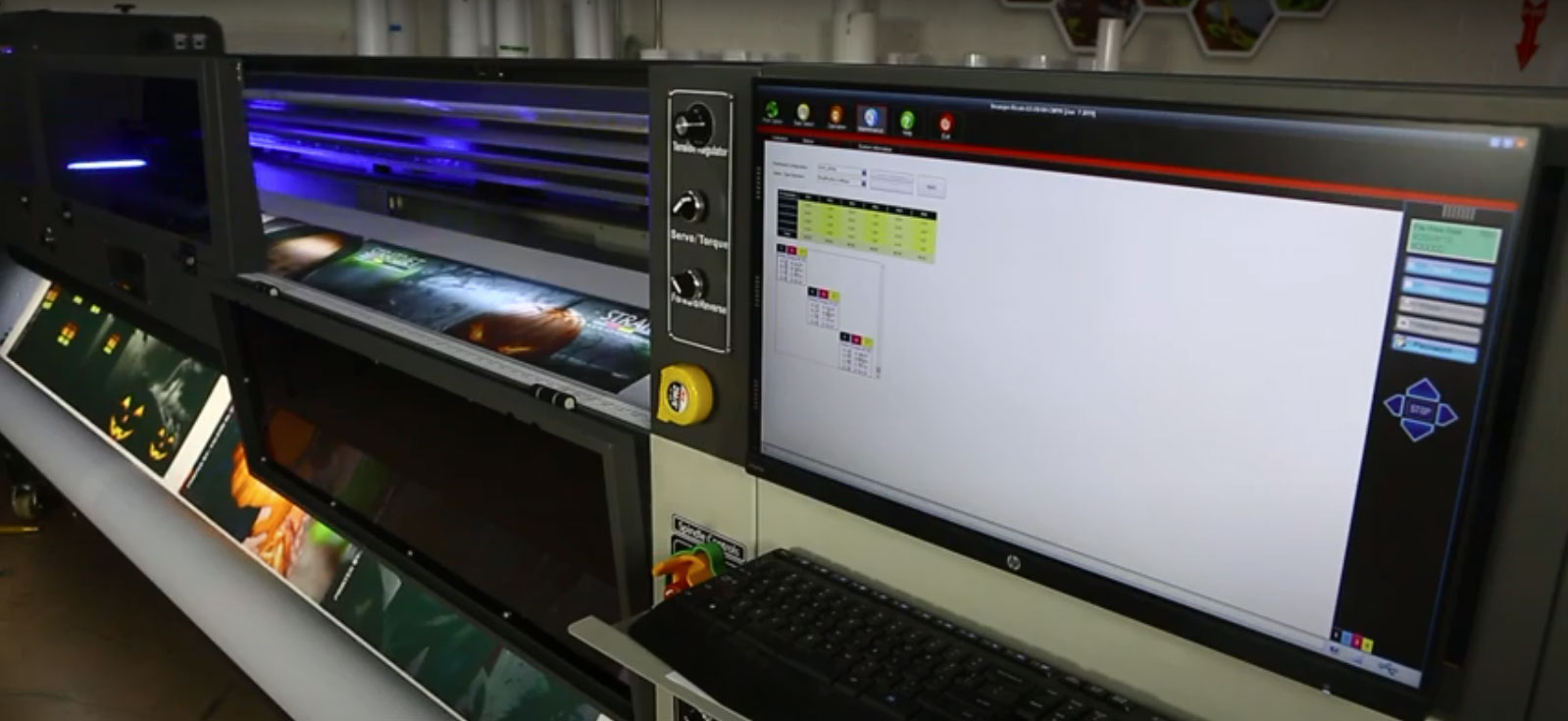

Designed with simplicity as it base, control speed, movement, print quality modes and more from your desktop with StratoJet Printer Controller

Falcon Roll Printers does not have a Main Board, it uses the desktop board as its main board. Decreasing your downtime, and allowing you to get more control

Premium RIP software package with intuitive tiling, scaling, cropping and many more essential features included

Per color Purge Option, allows you to save on ink wastage by only purging the color that needs cleaning

Built-in media ionizer to reduce static and ensure accurate ink frequency for materials that generate a lot of statc

Print high-opacity White upto 16 layers with CMYK in single pass and Control White Transparency with unique layer percentage modes

Want To Know More About FALCON XL-3300?

TALK TO OUR TEAM

Specifications

Printing Technology 4 Channel Piezoelectric inkjet system using true greyscale system; with Adjusted Dot Placement Technology using dual nozzle base, and variable droplet printheads per channel
Resolution Variable droplet sizes from 5 to 25 picolitres. The ability to vary the drop size to 5 picolitres Produces sharp images, 15 picolitres for smoother gradients and quartertones. The ability to jet larger droplets up to 25 picolitres produces uniform colours. The result is near-photorealistic quality with sharpness only before seen at resolutions of 2400 dpi.
Text as small as 2 pt. is perfectly readable (in Quality mode).
Handling Single High Suction Vacuum Table
Rigid Media Support Maximum width: 330 cm (130 inches)
Maximum Mass: 35 kg/m2 (8 lb/ft2)
Maximum Thickness: 6 mm (0.2 inches)
Print speed Model A Model B
m2/h ft2/h m2/h ft2/h
Max Speed 60 650 113 1210
Production 22 240 33 350
Quality 15 165 25 265
Built Architecture True roll to roll and roll to free fall flexible media printing with Shark ADP Technology: with an efficient airflow technique combined with high strength suction system. Roll Print system supported by pneumatic control system and advanced grip system
UV Curing Lamp Type Water Cooled LED, estimated life 12,000* hours
Ink Type SolaUV Curable Ink packed in 1 Liter Bottles
Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, Red, Green, Orange, Violet, White
Ink Capacity 1 Liter Ink Reservoirs
Connectivity High Speed USB Cable with Type – A on one end and Standard Type – B on the other end with maximum performance peripherals
Image Processing Software StratoFlex StratoJet Edition Raster Image Processor.
Also supporting:
Onyx Version 18.0+ and higher including Thrive, Postershop and Production House
Flexiprint (SAi) All Versions including subscription
Caldera Version 10.10 and higher
Electrical Requirements /Compressed Air 208-220 VAC 50/60 Hz 50A
Clean, dry, compressed air using a Coalescing Filter.
Pressure Regulator set to 690 kPa (100 psi) and connects air regulator to ½ inch or 12mm OD air tubing
Peak flow: 113 l/min at 690 kPa (4 cfm at 100 psi)
Environment Temperature: 68 to 79 ˚F (20 to 26 ˚C)
Humidity: 40% to 70% Non-Condensing
Ventilation: 1.200 m3 per hour / 700 cfm minimum
Altitude: 2.750 m (9.020 feet) maximum, however some components specify a limit of 2.000 m (6.560 feet)
Size and Weight Assembled Dimensions:(L x W x H) 554 x 100 x 169 cm (218” x 40” x 67”)
Assembled Weight (approx.):2300 Kg (5071 lbs.)
Shipping Dimensions:(L x W x H) 572 x 110 x 192 cm (226” x 44” x 76”)
Weight Shipping: 3000 Kg (6614 lbs.)
