Solvent High Production Inkjet Printers
Looking for a consistent and robust Solvent Inkjet Technology to start your first step into wide format graphics or take your graphics to the next level? Expand your sign, vehicle graphics, commercial print or other customization business with a cost-effective and reliable printer that provides premium graphics output but at an unbelievable low investment. Built size of 3300mm, here are just some of the profitable large format applications of the famous.

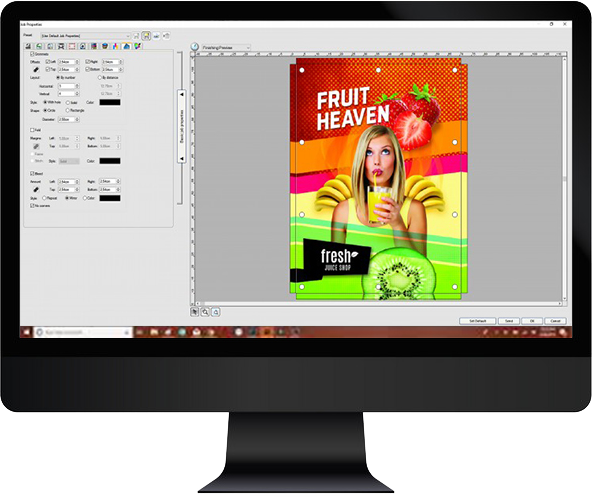

The latest edition of the world’s most popular RIP software offers new features for effortlessly managing your print output.
Latest raster image processor dual core engine and 64-bit native processing for enhanced
speed and file handling.
Easy new drag-and-drop interface allows you to quickly add jobs to the print queue.
All the advanced and easy cropping, tiling, nesting and other features of StratoFlex
Twelve print queues, dual hot folders and unlimited queue settings.
Integrated spot color libraries include Pantone and Additional Color Settings.
Get add-on tools to calculate ink, media and production cost data before printing
Cloud based software to remove USB, or Dongle needs to run the program
Shark Series of Solvent Inkjet Printers have been market for over 14 years. Winning multiple awards for its stunning color and image quality that helps you stand out from the competition. Built with the best work from Indian and American Engineering and an uncompromising detail put on support (Remote Tech), the Shark III is designed for high production needs without comprising quality, dependability and versatility to build new levels of profit and success.
| Printhead Technology | Drop on demand piezoelectric inkjet system using Adjusted Dot Placement Technology | |||||
| Resolution | Multi droplet sizes available 6 - 42 picolitres. The ability to vary the drop size to 6 picolitres Produces sharp images, for smoother gradients and quartertones, and Text as small as 2 pt. is perfectly readable (in quality modes). The ability to jet larger droplets up to 30 picolitres produces uniform colours, with saturated backgrounds and far viewing distance images | |||||
| Curing method | 3 Step Infrared Heating Process to cure prints instantly – Quick dry with low temperature curing | |||||
| Ink Colours | Cyan, Magenta, Yellow, Black | |||||
| Ink Type | I-Series Pigment Based Solvent Inks : CMYK (packed in 5 Litre Bottles) | |||||
| Ink Packaging | 6 x 1 Ltr Bottle Ink reservoir capacity 2 litre per colour ; 0.5 litre main line usage Ink refill capability while printing | |||||
| Print speed | 44 – 265 m2/hr | |||||
| MEDIA | ||||||
| Roll Width | Maximum 3300mm | |||||
| Roll Weight | Maximum 150 kg | |||||
| Core Diameter | Maximum 76.2mm, 50.8mm | |||||
| Media Thickness | Maximum 3 mm with liner | |||||
| Roll Feeding | Print inside or outside | |||||
| TECHNOLOGY | ||||||
| Print System | Pinch roll movement and dot gain control system High color accuracy and consistency Excellent flexibility and scratch resistance Triple heat controller to ensure quick curing | |||||
| Clean System | Instant heat – cool procedure to provide maximum curing by closing media pores, suitable for thin and heat-sensitive media High density pigment based Inks to provide superb durability Prints on smooth and porous/structured media | |||||
| INTERFACE | ||||||
| Connectivity | High Speed USB Cable with Type – A on one end and Standard Type – B on the other end with maximum performance peripherals | |||||
| SOFTWARE | ||||||
| Image Processing Software | StratoFlex 19 StratoJet Edition Raster Image Processor.
Also supporting: Onyx Version 18.0+ including Thrive, Postershop and Production House Flexiprint (SAi) All Versions including subscription Caldera Version 10.10 and higher |
|||||
| POWER AND TEMPERATURE REQUIREMENTS | ||||||
| Electrical Requirements | 208-240 VAC +/- 10%, 50/60 Hz 20A
Up to 3 kW printing |
|||||
| Environment | Temperature: 18 to 26 ˚C (64 to 84 ˚F)
Humidity: 40% to 70% Non-Condensing |
|||||
| DIMENSIONS | ||||||
| Size and Weight | Assembled Dimensions: (L x W x H) 4960mm x 950mm x 1580mm (196” x 38”x 63”) Assembled Weight (approx.): 1500 Kg (3307 lbs.) | |||||
| PC REQUIREMENTS | ||||||
| Operating system | Windows® 10 (64-bit)
Windows® 8.1 (64-bit) Windows® 7 Professional / Ultimate (64-bit) |
|||||
| CPU | 4 GB or more recommended | |||||
| Free hard-disk space | 40 GB or more recommended | |||||
| Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high-performance computer as possible to reduce RIP processing time. We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution. | ||||||
| Compatible Application Software | Adobe® Illustrator® 10, CS, CS2, CS3, CS4, CS5. CS6
CorelDRAW® 11, 12, X3, X4, X5 |
|||||
