Piranha™ XT Series

Reliable Multi-Function Dye Sublimation Printer

The all-in-one solution for apparel business, soft signage, décor, graphics and much more applications with unique features to provide unmatched cost and time saving. The high-performance Piranha™ is purposefully designed for high-visibility dye-sublimation printing offering outstanding graphic results to help you grow your business.
Affordable – Intelligent – Reliable
DOWNLOAD BROCHURE

Invest in a solution that gives you
Expanded Applications with Simplicity

Piranha™ offers choice of saturation modes, high dot accuracy, and color adjustment features to help simplify dye-sublimation production for soft-signage and textile. This is the latest blend of versatility with intelligent color controls providing more ease in printing to transfer paper for rigid sign, merchandise, and hard surface customization as well as Fashion, Apparel, Sportswear, and Soft Signage.

Application Questions
3D Objects
Backlit
Banner
Fashion Clothing
Flags
Decor
Point Of Purchase
Interior
Soft Signage
Sports Wear
CONTACT US

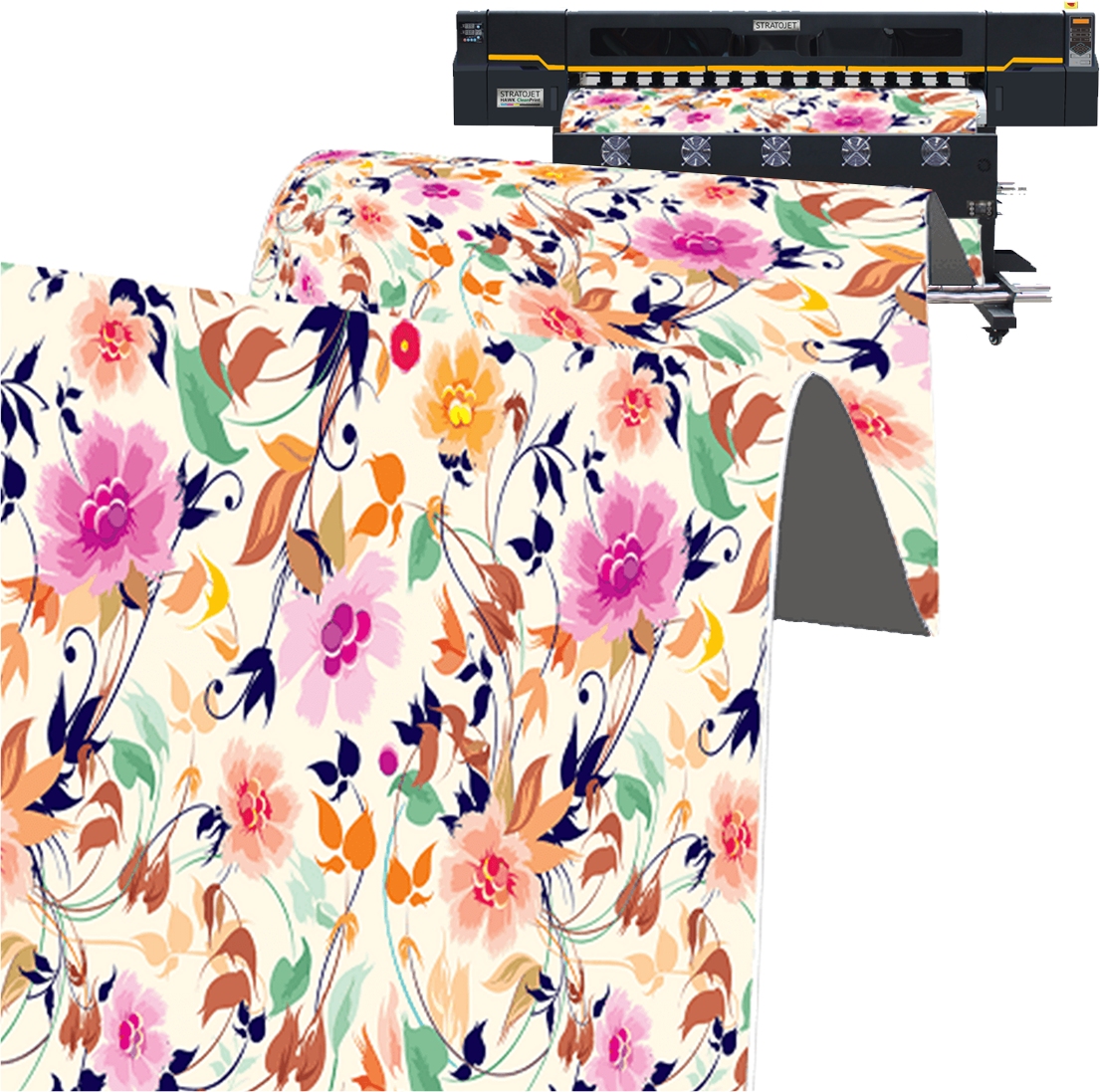

Piranha XT500

For media sizes upto 1.8 metres

Benefits

Printer that Grows with your Business

Developed for times when Business is starting to when Business is cranking, with easy on-demand upgradability to help grow with your business

Maximum Time and Money Saving

Produce print that print directly onto coated polyester fabrics, as well as dye-sublimation transfer paper,.Save time by eliminating manual interventions with automatic printhead maintenance and cut your media costs by managing low grammage papers with confidence.

Unrivaled Quality

Quality is the key ingredient to win any project, get the ability to print stunning photorealistic quality, ultra-saturated colors, and sharp text with confidence

Breakthrough Productivity

Deliver more high-quality output same-day up to 1.8 metres (72”) wide and ink refill while printing capability to ensure non-stop printing for maximum production

Unshakable Media Handling

Built to perform vacuum powered printing platen with vacuum controls to ensure all kinds of materials run wrinkle free and add overall efficiency in productivity

Safety a Step Ahead

Headstrike Detection during printer to ensure Printhead Protection with minimum downtime and media wastage

Other Productivity Features

• Continuous Printing - Adjustable media feed system that combines with the front media take up to ensure stable production

• 1 Liter Ink Refills - Built-in bulk ink system to provide ease and ability to add ink while printing to provide maximum productivity

• Optimized Printheads with ADP Technology - Advanced 8-channel print heads offer efficient ink coverage that lowers running costs with ADP Technology

• Advance Media Handling - Double Adjustable media feed for accurate media movement before printing and accurate centering for take-up

• Support Heavy Roll Media - Heavy Duty DC Motors in Piranha™ XT Series provides the ability to use heavy paper rolls with confidence

• Long Washability Inks - StratoJet XT Series Inks offers superior color and durability results for longer washability and color consistency

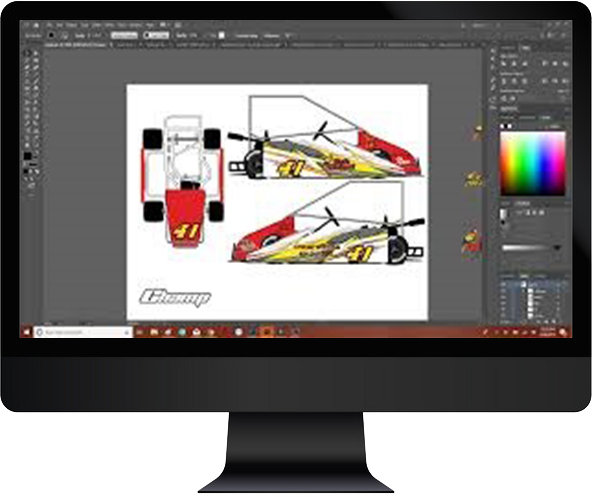

Includes StratoFlex Raster Image Processing Software –For Powerful Print Workflow

With multiple print modes for most common applications, StratoFlex is one of the simplest and reliable RIP softwares for textile and dye-sublimation, built with standard RIP tool features as well as advanced production tools to effortlessly manage your print output.

• RIP up to 9-jobs simultaneously, unlimited hot folders and job cost estimation

• Work in print environments and print modes for the most common dye-sublimation fabrics and media

• Step & repeat and tiling features for advanced media saving and efficiency

• Job cost calculation and other advanced production features available as add-on

• Superior color management with color replacement and extensive Colorbooks swatches

Want To Know More About Piranha™ XT Series?

TALK TO OUR TEAM

Specifications

Print
Printhead Technology 8 Channel Piezoelectric inkjet system using Adjusted Dot Placement Technology, and Water Based Micro TFB Printheads
Resolution Variable droplet sizes from 3 to 12 picolitres. The ability to vary the drop size to 3 picolitres Produces sharp images, 6 picolitres for smoother gradients and quartertones. The ability to jet larger droplets up to 12 picolitres produces uniform colours. The result is near-photorealistic quality with sharpness only before seen at resolutions of 2800+ dpi Text as small as 2 pt. is perfectly readable (in all modes).
Curing method Dye Sublimation and Direct to Special Coated Fabric*
Ink Colours Cyan, Magenta, Yellow, Black
Ink Type XT Series – CMYK (packed in 1 Litre Bottles)
Ink Packaging 6 x 1 Ltr Bottle
Ink reservoir capacity 1 litre per colour ; 0.3 litre main line usage
Ink refill capability while printing
Print speed 12-81 m2/hr
Maintenance Auto printhead maintenance with software control performed within seconds
Distance Accuracy Error of less than ±0.3 % of distance travelled, or ±0.3 mm, whichever is greater
Media Heating System IR Print Dryer, setting range for the preset temprature: 30 to 60℃. Dryer setting range for the preset temperature : 30 to 60℃
Media
Roll Width Maximum 1830mm
Roll Weight Maximum 60 kg
Roll Diameter Maximum 220mm
Media Thickness Maximum 0.9 mm
Technology
Print System Pinch roll movement and dot gain control system High color accuracy and consistency Dual tension bar movement controls for unattended print consistency**
Interface
Connectivity High speed LAN cable on both ends with maximum performance peripherals
Software
Image Processing Software StratoFlex 19 StratoJet Edition Raster Image Processor.
Also supporting:
Onyx Version 18.0+ including Thrive, Postershop and Production House
Flexiprint (SAi) All Versions including subscription
Caldera Version 10.10 and higher
Power & Temperature Requirements
Electrical Requirements Main Power: 1 input 208-240 VAC +/-10%, 50/60Hz, 10A
Heater: 1 input 208-240 VAC +/-10%, 50/60Hz, 20A
Upto 5 kW printing
Environment Temperature: 18 to 26 ˚C (64 to 84 ˚F)
Humidity: 40% to 70% Non-Condensing
Dimensions
Size and Weight Assembled Dimensions: (L x W x H) 3050mm x 600mm x 1340mm (116”x 30”x 54”)
Assembled Weight (approx.):330 Kg (673lbs.)
PC Requirements
Operating system Windows® 10 (64-bit)
Windows® 8.1 (64-bit)
Windows® 7 Professional / Ultimate (64-bit)
CPU 4 GB or more recommended
Free hard-disk space 40 GB or more recommended
Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high-performance computer as possible to reduce RIP processing time. We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution.
Compatible Application Software Adobe® Illustrator® 10, CS, CS2, CS3, CS4, CS5. CS6
CorelDRAW® 11, 12, X3, X4, X5
