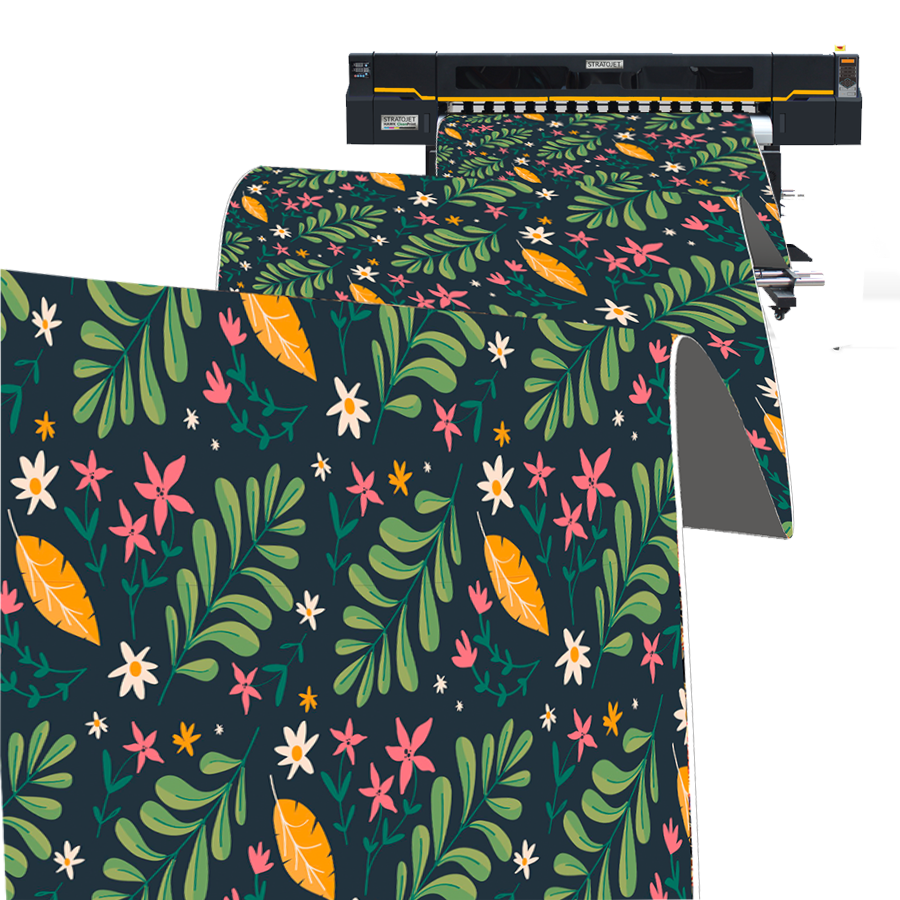

Next Generation Clean Ink Printer with flexible inks and instant curing

Explore new business horizons with an astounding application range. Exceed client expectations with Clean Inks ideal for handling urgent jobs and high-volume print shop needs to deliver the best quality output at high speeds. Produce designer wallcovering, stunning decals, vehicle wraps, posters, banners, indoor and outdoor signs at class breaking speeds with the lowest cost in its segment. Download brochure (pdf) Download Clean Ink Technology Brochure (pdf)

The Perfect Combination Of
Speed and Quality

Printer that Grows with your Business

Developed for times when Business is starting to when Business cranking, with easy on-demand upgradability to help grow with your business

Maximum Versatility

Produce print that cure superfast to ensure quick turn-around time, odor-free and ready to use instantly

Unrivaled Quality

With Quality being its main ingredient, get the ability to print the stunning photorealistic quality, ultra-saturated colors, and sharp text with ease

Breakthrough Productivity

Deliver more high-quality output same-day up to 1.8 metres (72”) wide, and ink refill while printing capability to ensure non-stop printing for maximum production

Unshakable Performance

Built to perform under pressure with non-stop production testing for 120 hours, Hawk CleanPrint is designed to spend less time in operations and focus more on making money

Low Operation Cost

Improve overall cost with high-capacity inks, competitive clean ink price, and low power consumption. Free up valuable operator time with quick print modes and automated cleaning system

Applications

Hawk offers choice of saturation modes, high dot accuracy, and color adjustment features. The Clean Ink supports a broad media range, including self-adhesive vinyls, canvas, indoor and outdoor banners and much more all dry, odor free and ready for use. The increased stretch ability ensures you can plie, bend or fold the prints without problems.

Application Questions
Canvas
Decor
Decals
Window Films
Floor Graphics
Wall Graphics
Wall Graphics
Posters
Floor Graphics
Signs
Banners

The Market is now more dynamic and competitive than ever, demanding Quality and Speed but at a very low cost. We always thought that this impossible until we discovered the Hawk.

Sukhdeep Gill – AMS (IND)

Productivity Features

• Instant Dry - Integrated Hot and Cool Curing System for instant dry prints ready for immediate finishing, and installation

• 1 Liter Ink Refills - Built-in bulk ink system to provide ease and ability to add ink while printing to provide maximum productivity

• Durability and Odor-Free Printing - Cleaning Inks use a unique synthetic ink formulation that provides more applications and unique odor free environment for the operations

• Advance Media Handling - Double Adjustable media feed for accurate media movement before printing and accurate centering for take-up

• Support Heavy Roll Media - Heavy Duty DC Motors in Hawk CleanPrint provides the ability to use heavy banner and media rolls without any extra add-ons, and print consistently throughout

• Unmatched Applications - Fully adjustable print head carriage support various media thicknesses to allow numerous applications that are not possible in any other printers in this segment

Want To Know More About Hawk CleanPrint ?

TALK TO OUR TEAM

Specifications

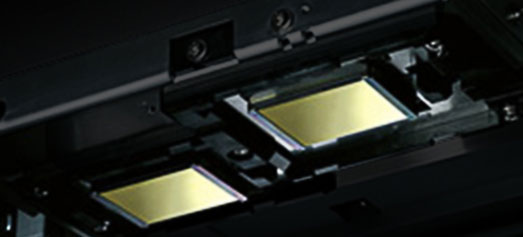

Printhead Technology 8 Channel Piezoelectric inkjet system using Adjusted Dot Placement Technology , and Micro TFB Printheads
Resolution Variable droplet sizes from 3 to 12 picolitres. The ability to vary the drop size to 3 picolitres Produces sharp images, 6 picolitres for smoother gradients and quartertones. The ability to jet larger droplets up to 12 picolitres produces uniform colours. The result is near-photorealistic quality with sharpness only before seen at resolutions of 2880 dpi .Text as small as 2 pt. is perfectly readable (in all modes).
Curing method Hot – Cool Process to cure prints instantly – Quick dry with low temperature curing
Ink Colours Cyan, Magenta, Yellow, Black
Ink Type Clean Inks – CMYK (packed in 1 Litre Bottles) and Primer
Ink Packaging 6 x 1 Ltr Bottle
Ink reservoir capacity 1 litre per colour ; 0.3 litre main line usage
Ink refill capability while printing
Print speed 8 – 81 m2/hr
Maintenance Auto printhead maintenance with software control performed within seconds
Connectivity High speed LAN cable on both ends with maximum performance peripherals
Image Processing Software StratoFlex 19 StratoJet Edition Raster Image Processor.
Also supporting:
Onyx Version 18.0+ including Thrive, Postershop and Production House
Flexiprint (SAi) All Versions including subscription
Caldera Version 10.10 and higher
Media
Roll Width Maximum 1830mm
Roll Weight Maximum 60 kg
Roll Diameter Maximum 220mm
Media Thickness Maximum 0.9 mm
Roll Feeding Print inside or outside
Technology
Print System Pinch roll movement and dot gain control system
High color accuracy and consistency
Odourless and instant dry, ready to finish output
Excellent flexibility and scratch resistance
Dual tension bar movement controls for unattended print consistency
Clean System Instant heat – cool procedure to provide maximum curing by closing media pores, suitable for thin and heat-sensitive media
Synthetic Inks to provide superb durability
Prints on smooth and porous/structured media
Interface
Connectivity High Speed USB Cable with Type – A on one end and Standard Type – B on the other end with maximum performance peripherals
Software
Image Processing Software StratoFlex 19 StratoJet Edition Raster Image Processor.
Also supporting:
Onyx Version 18.0+ including Thrive, Postershop and Production House
Flexiprint (SAi) All Versions including subscription
Caldera Version 10.10 and higher
Power & Temperature Requirements
Electrical Requirements Main Power: 1 input 208-240 VAC +/-10%, 50/60Hz, 10A
Heater: 1 input 208-240 VAC +/-10%, 50/60Hz, 20A
Upto 5 kW printing
Environment Temperature: 18 to 26 ˚C (64 to 84 ˚F)
Humidity: 40% to 70% Non-Condensing
Size and Weight Assembled Dimensions: (L x W x H) 3050mm x 600mm x 1340mm (116”x 30”x 54”)
Assembled Weight (approx.):330 Kg (673 lbs.)
PC Requirements
Operating system Windows® 10 (64-bit) or haire
Windows® 8.1 (64-bit)
Windows® 7 Professional / Ultimate (64-bit)
Environment Temperature: 18 to 26 ˚C (64 to 84 ˚F)
Humidity: 40% to 70% Non-Condensing
CPU 4 GB or more recommended
Free hard-disk space 40 GB or more recommended
Please note: Considering that you will be using software such as Illustrator, we recommend that you use as high-performance computer as possible to reduce RIP processing time. We also recommend using a hard disk that has large enough capacity, as print files are often tens of GB in size (or larger) when data is high resolution.
Compatible Application Software Adobe® Illustrator® 10, CS, CS2, CS3, CS4, CS5. CS6
CorelDRAW® 11, 12, X3, X4, X5
